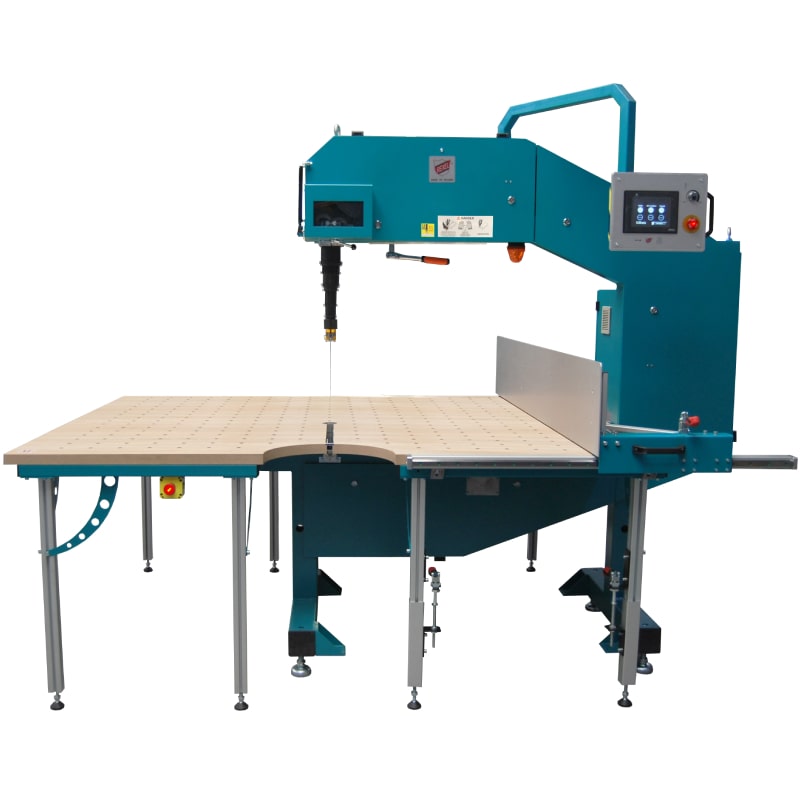

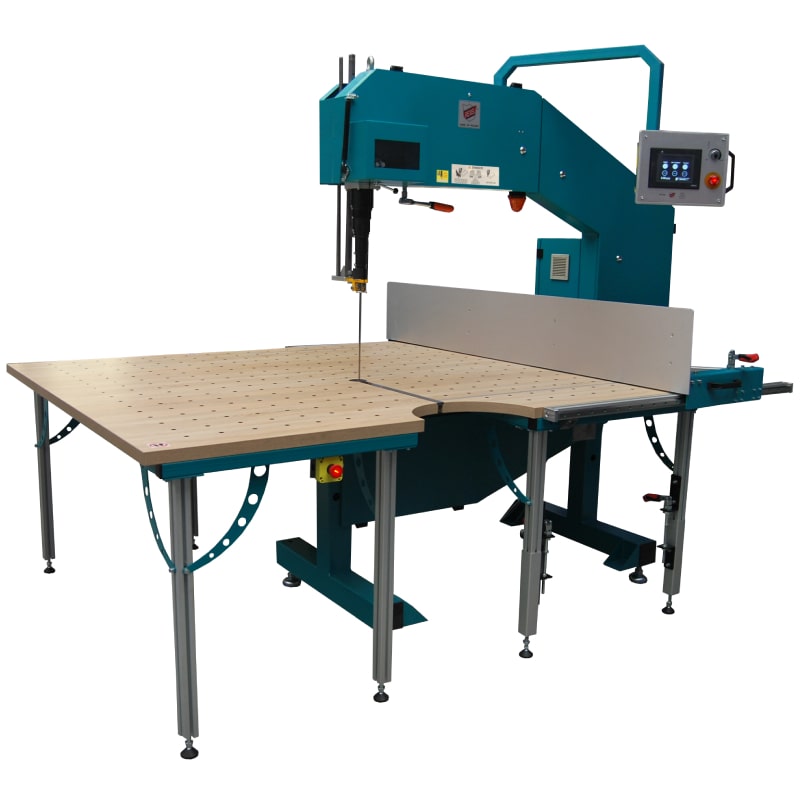

To meet customer needs, the Rexel R1150 band saw was developed with the capacity to cut foam furniture up to 500 mm in height. It delivers fast, precise cutting of upholstery foam and textiles (cotton, knitwear, synthetics, insulation, etc.) up to 300 mm thick—and foam insulation up to 500 mm. Actual layer thickness depends on the material.

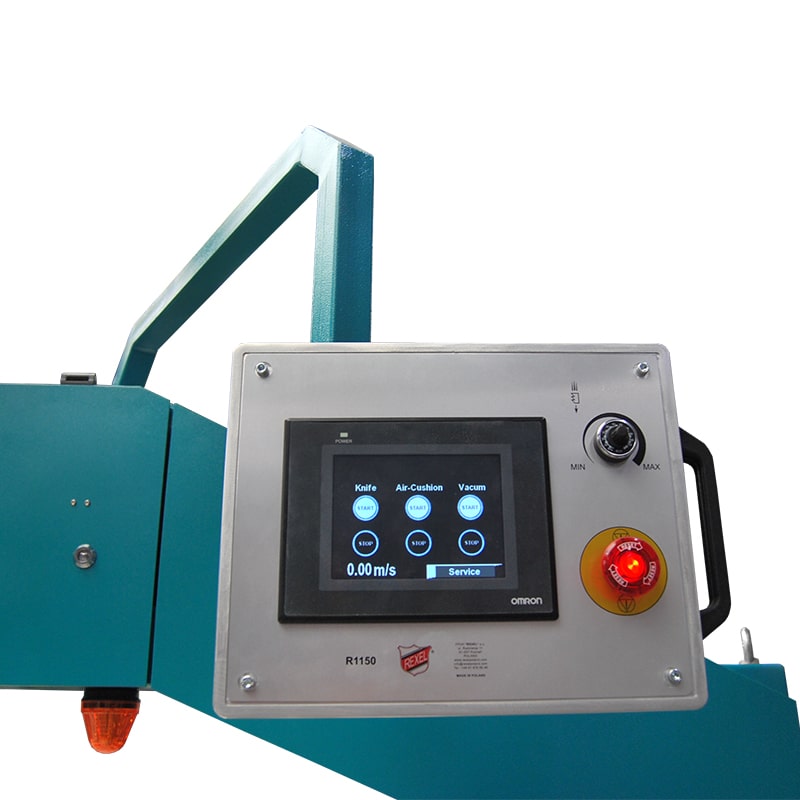

The saw is controlled via an intuitive touch screen and features an integrated grinding unit for high‑quality blade conditioning with minimal wear. Smooth, variable band‑speed control lets you dial in the perfect feed rate for any material.

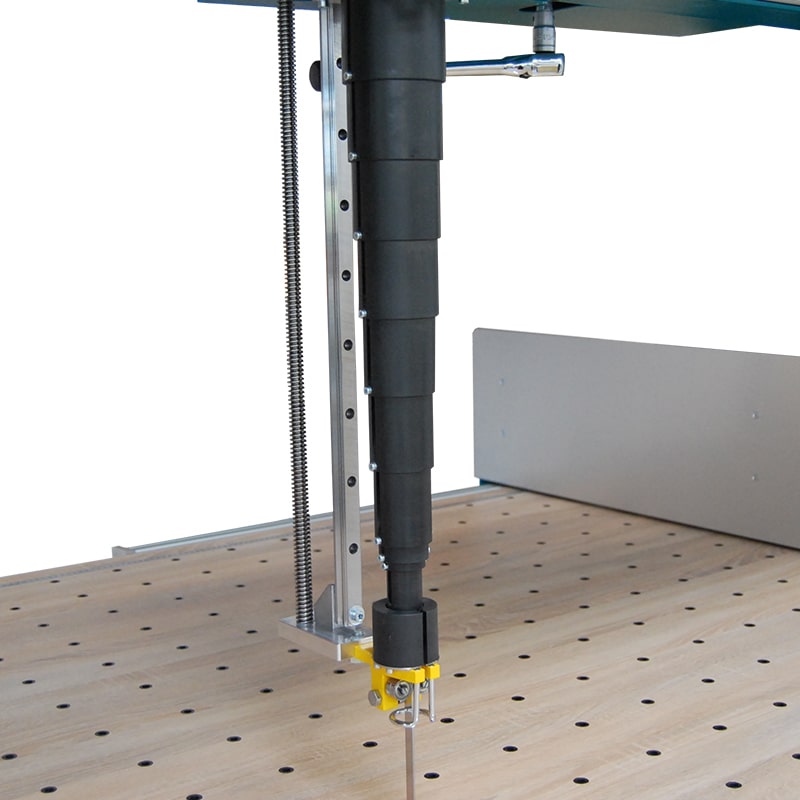

Multiple safety interlocks prevent operation if the dust container is open or blade tension is insufficient, and a dedicated microswitch stops the machine instantly upon blade breakage. A mechanical blade catcher locks a broken blade to prevent uncontrolled drop, and an airbag assists with moving large workpieces on the table. Optional dust extraction keeps the work area clean, and an accessory gauge provides accurate depth‑of‑cut measurements.
REXEL R1150 Safety Features
-

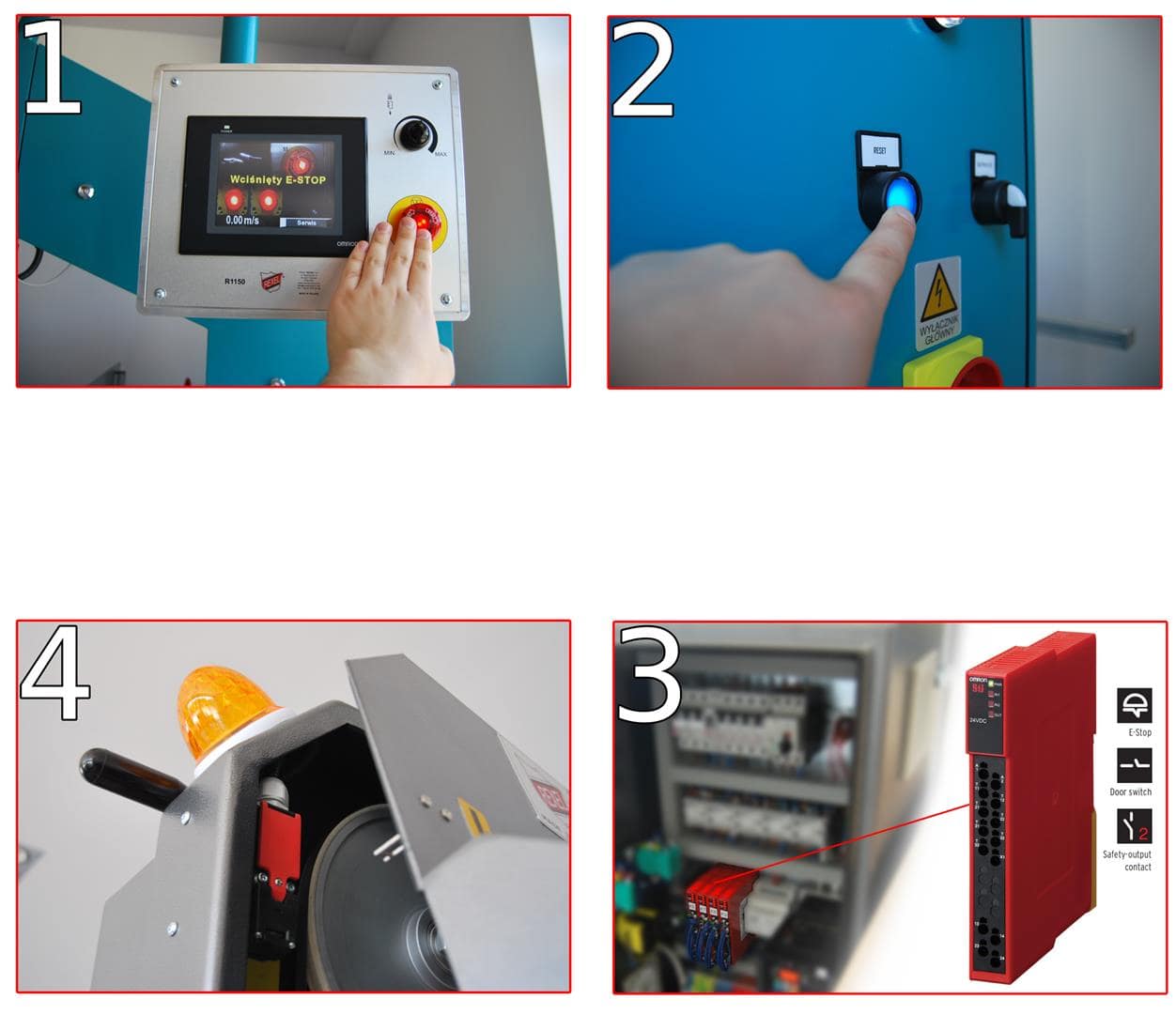

Emergency blade stop (under 1 second), triggered by:
- Pressing any E‑STOP button
- Blade breakage
- Opening any protective cover
- Manual restart required after any emergency stop—operator must consciously restart the machine.
- Omron safety relays protect all critical control circuits.
- Interlocked covers with Omron door switches prevent startup if any access cover is open.

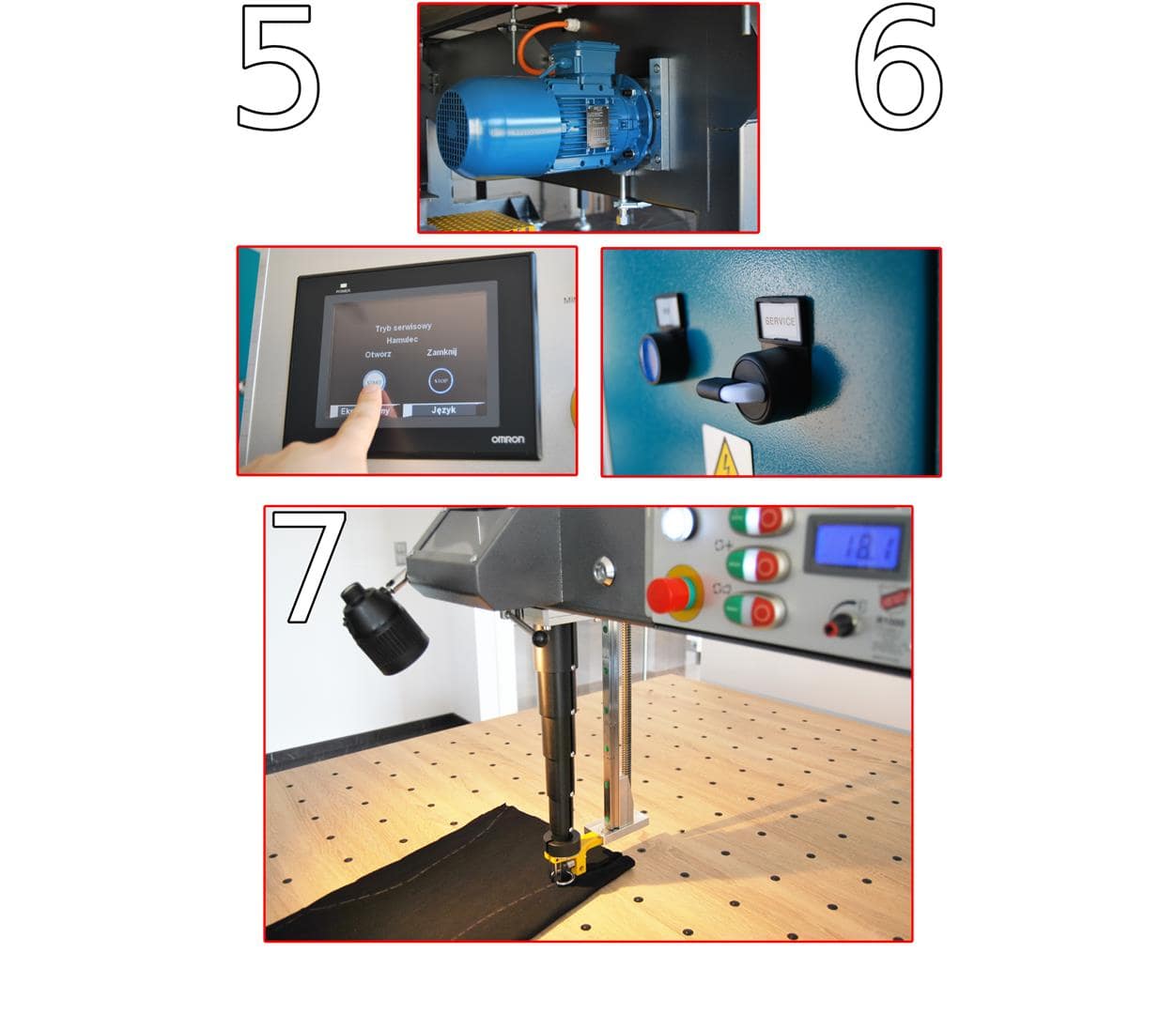

- Safe blade change: motor is mechanically and electrically locked during blade replacement.
- Dual motor‑stop mechanisms: the motor is halted both mechanically and electrically for fail‑safe shutdown.
Brand
Air cushion table
Band length
Blade speed

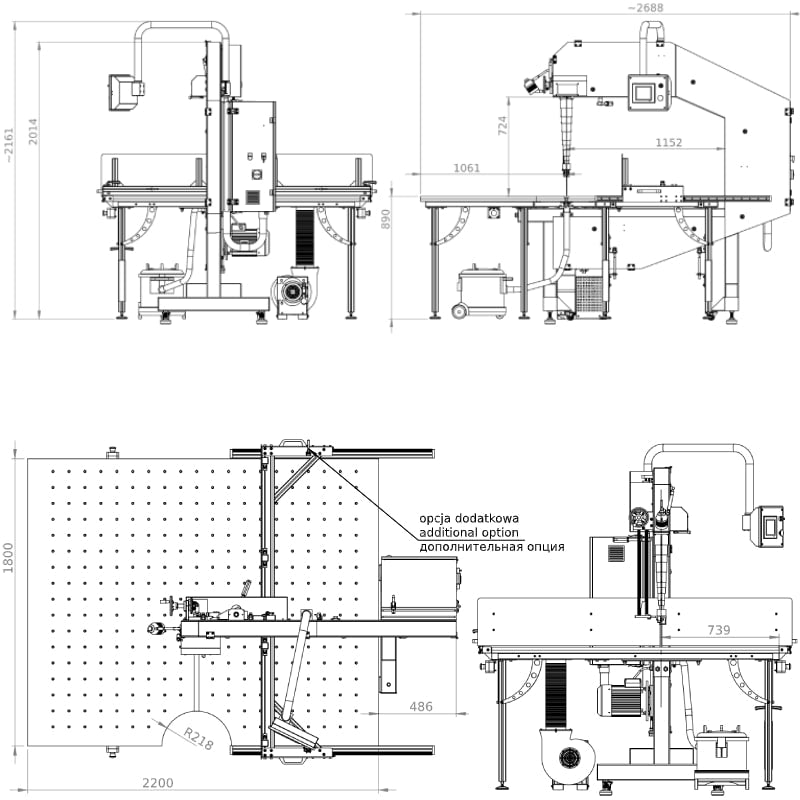

Dimensions
Dust extraction system
Grinding unit
Guide rollers
Installation casters
Max cutting height
Mechanical blade catcher
Motor power

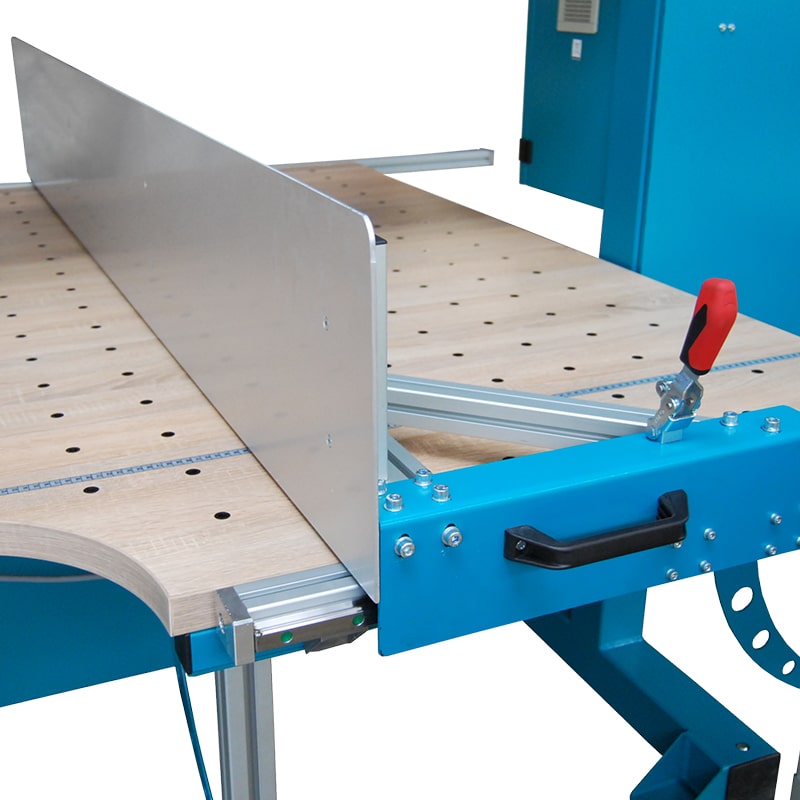

Pr-3 measuring stop
Push-button control panel

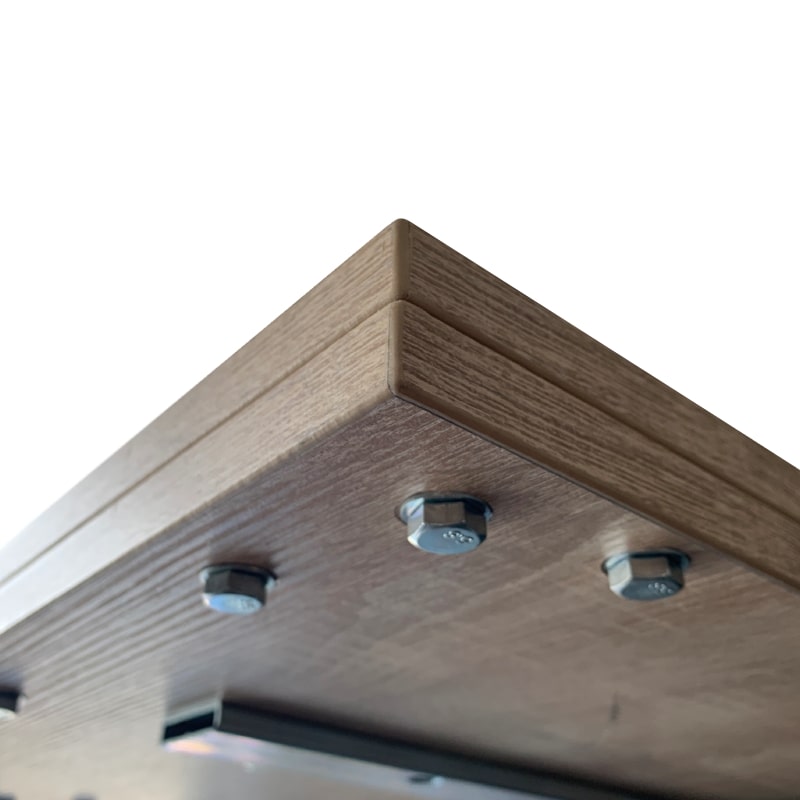

Table dimensions
Throat depth
Touchscreen control panel
Variable-speed inverter
Voltage/frequency options

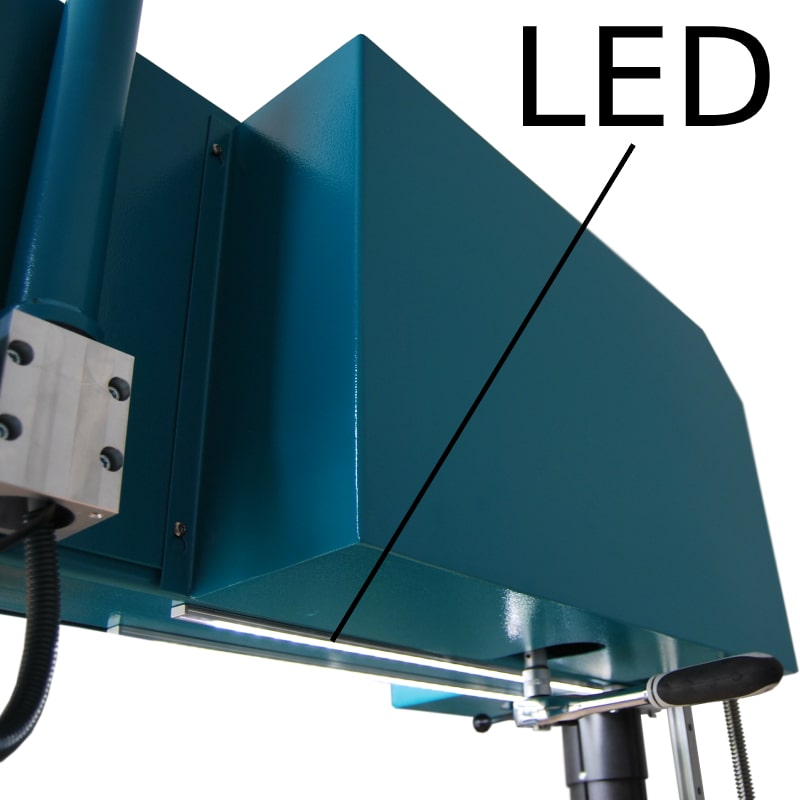

Work light
