ABR7015Z Simpson Strong-Tie - Reinforced Angle Bracket (70 x 70 x 55 mm) (1.5 mm)

Simpson Strong-Tie ABR-Z reinforced angle brackets are designed for structural connections in timber framing, timber-framed houses, and light-gauge steel construction. The brackets feature reinforcing ribs that increase load-bearing performance and improve stability in structural joints.

Manufactured according to EN 10346, the ABR-Z series is available in steel grades S250GD + ZPRO (ABR9020Z) and S350GD + ZPRO (ABR7015Z and ABR10525Z). The ZPRO anti-corrosion coating corresponds to an approximate 55 µm zinc layer, providing reliable durability in demanding environments.

Applications include:

• Small truss connections

• Fixing cladding plates and vertical cladding battens

• Rafter anchoring and support of cantilevers and headers

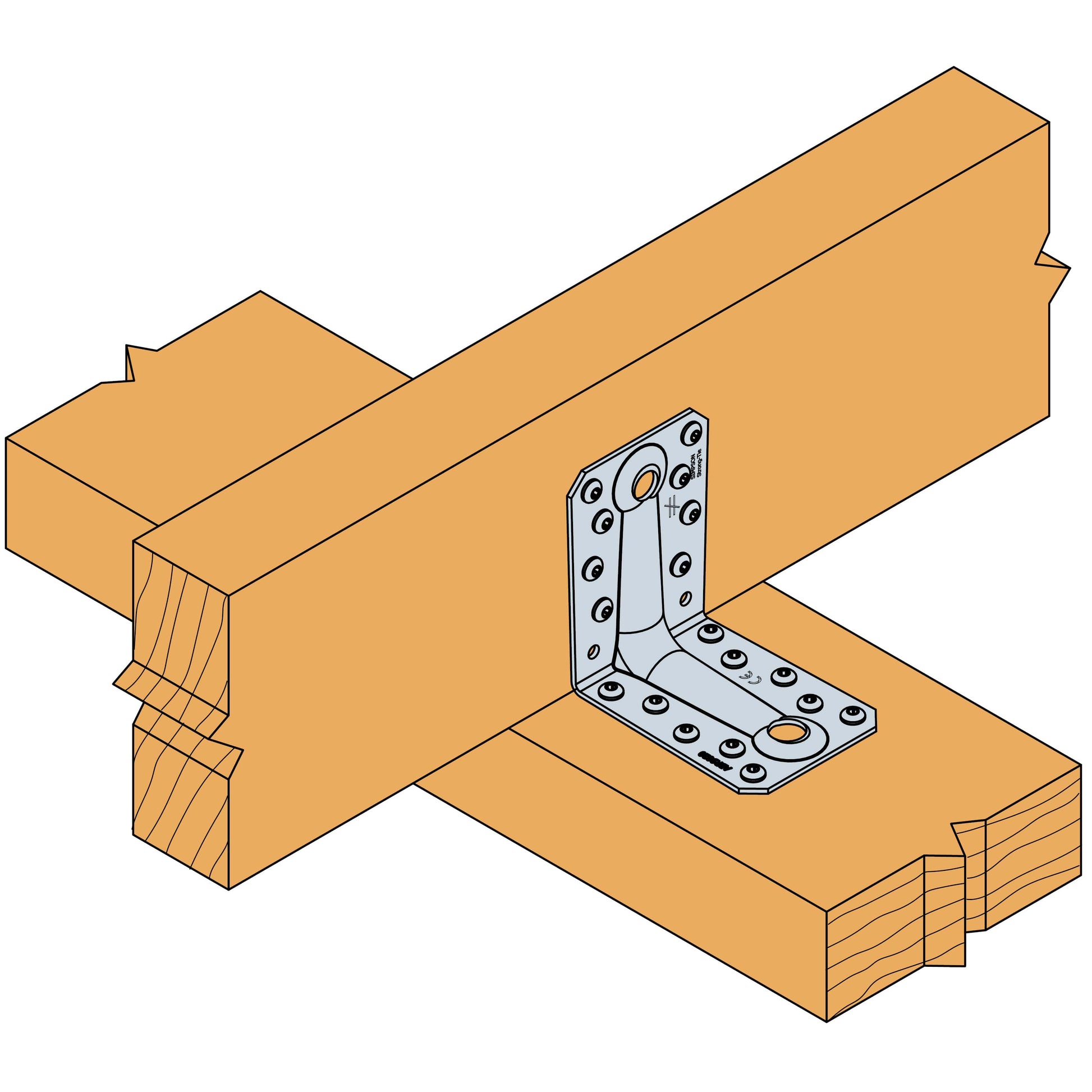

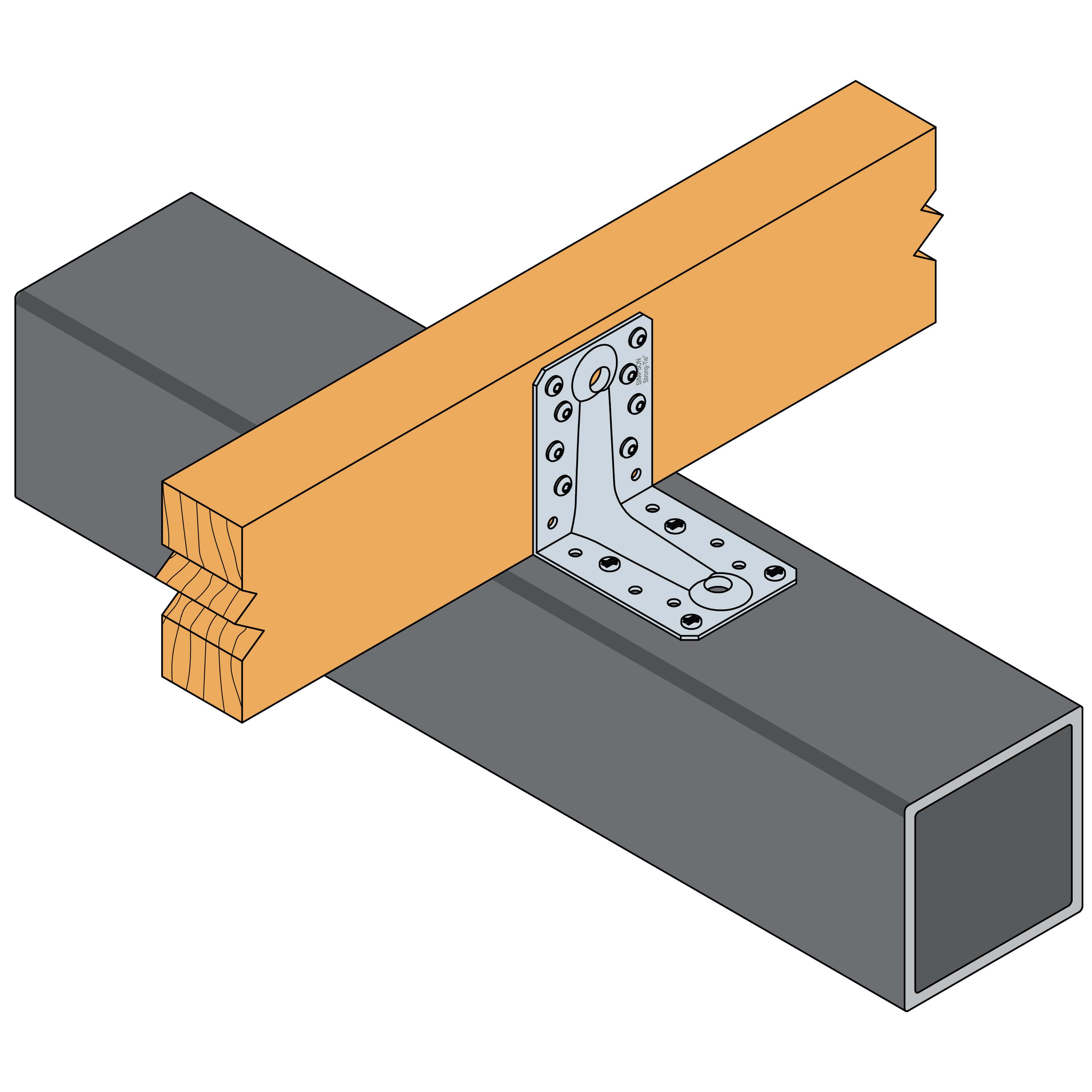

• Timber-to-timber, timber-to-steel, and timber-to-concrete connections

• Light-gauge steel structures

Suitable materials:

• Supporting member: solid wood, glued-laminated timber, concrete, steel

• Supported member: solid wood, composite lumber, laminated timber, triangular trusses, profiles

The ABR-Z brackets ensure a strong, safe, and durable connection, making them appropriate for a wide range of construction and assembly tasks.
