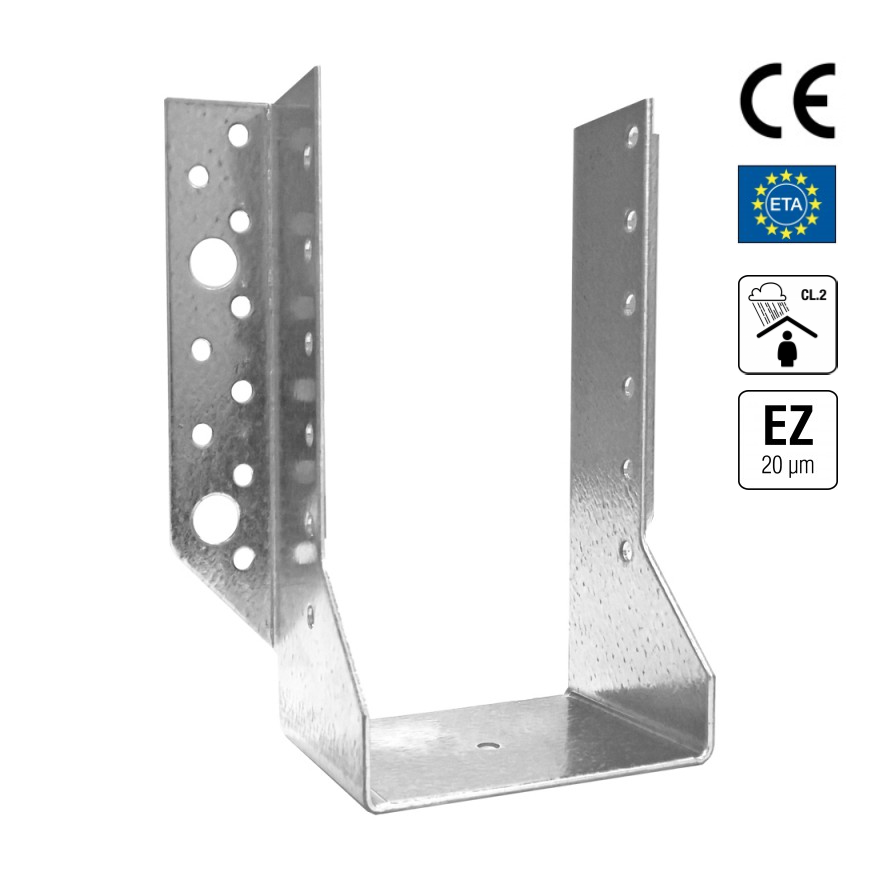

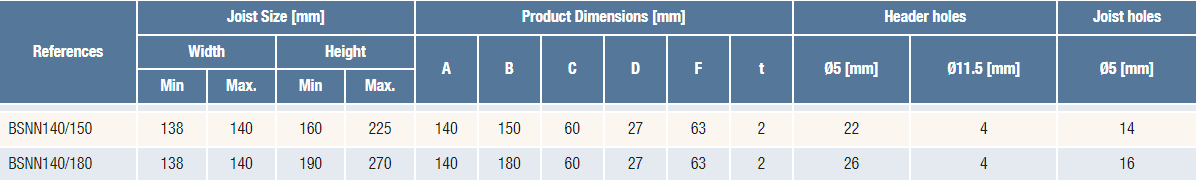

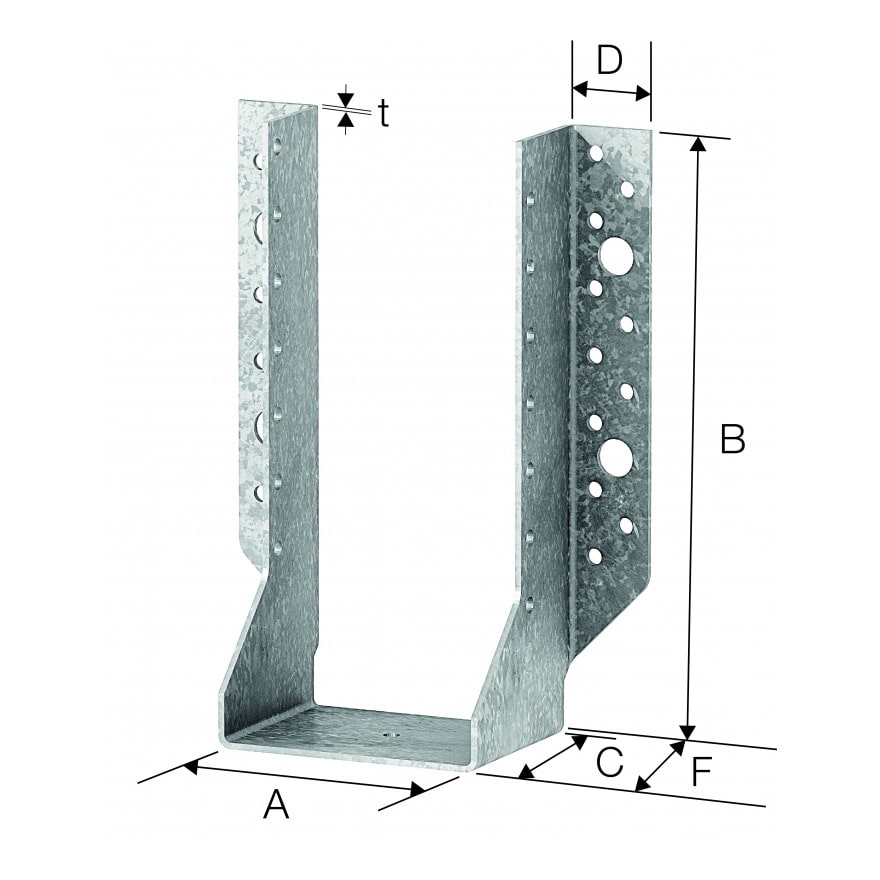

BSNN140/150 - Beam Holder (140 x 160-270 mm)

The BSNN series are sturdy holders designed for use in cases where exceptional durability is required. The hangers are attached using CNA system screws, but their surface also has holes for 12 mm fasteners. The depth of the hanger must be at least 2/3 of the height of the supporting element to avoid structural displacement, unless additional lateral reinforcement is added to the top of the supporting element.

Material:

• Zinc-coated steel S250GD + Z275 according to EN 10346 (thickness: 2 mm).

Advantages:

• BSNN beam hangers are also approved for three-axis loads;

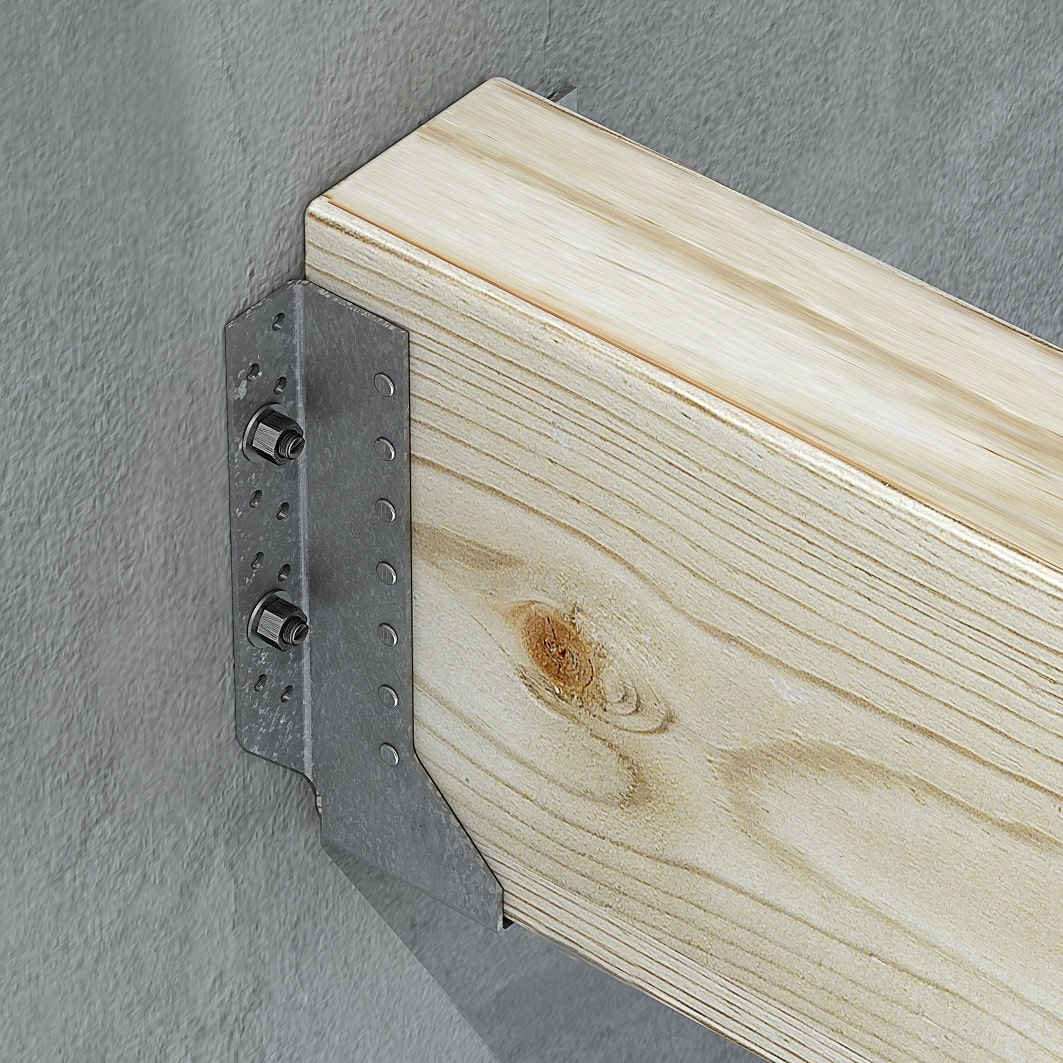

• Connections with concrete, steel, and masonry are allowed.

Usage:

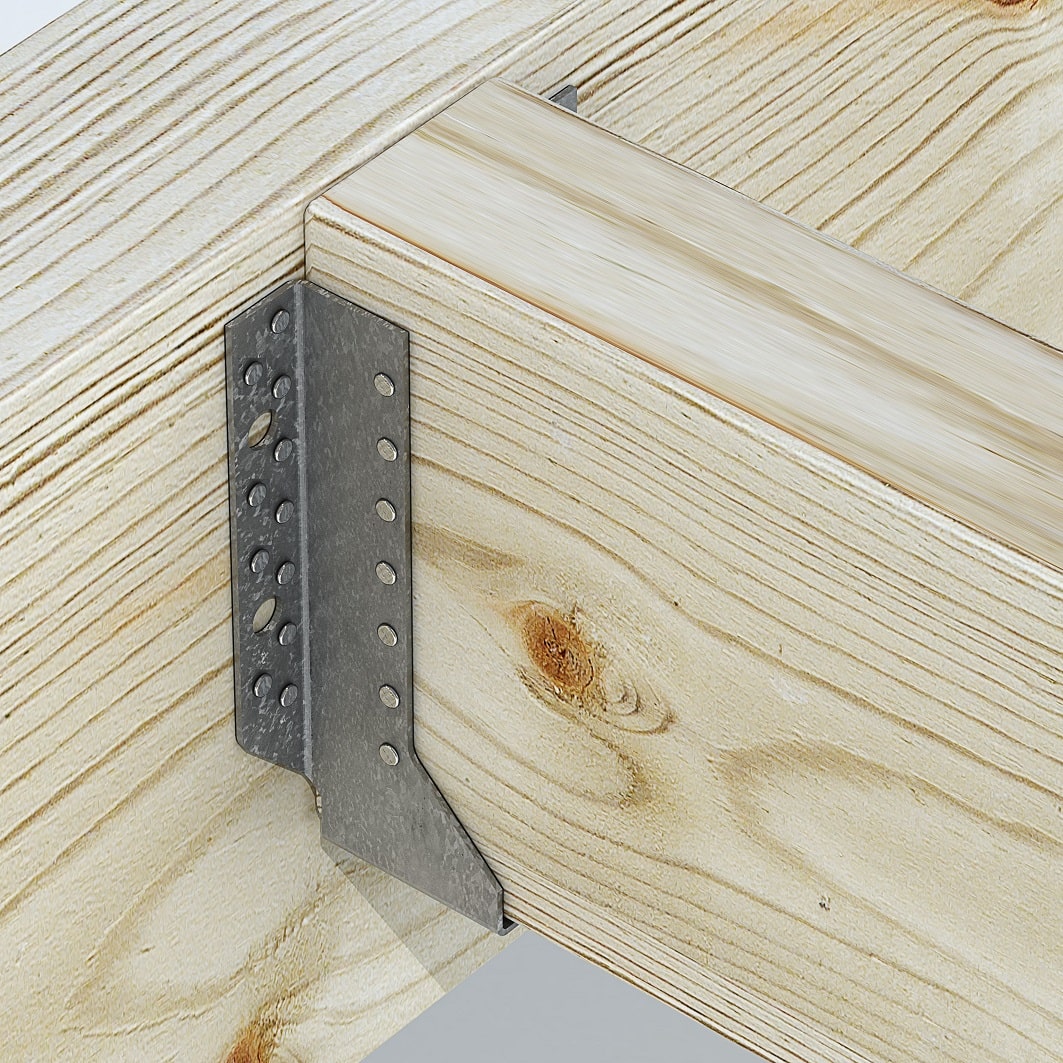

• Beams, crossbars, joists, rafters;
• Reinforcement of existing joints.
