By Simpson Strong-Tie

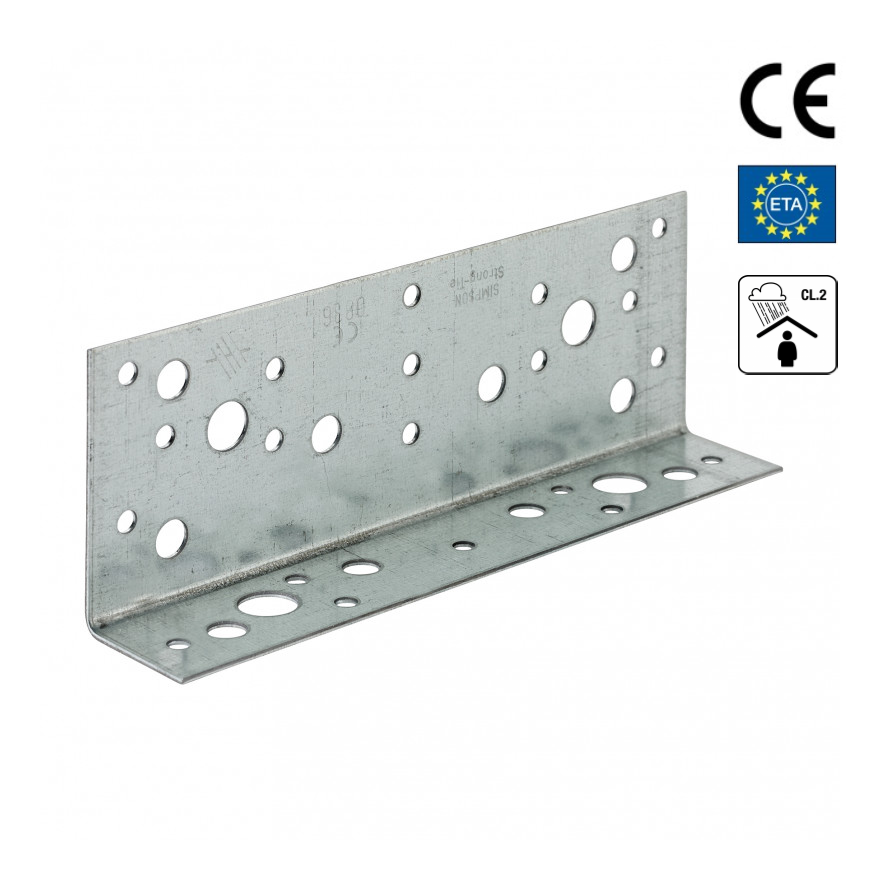

CE Certified Corner Angle Bracket (63 x 35 x 180 mm; BNV33)

Levering beregnes ved betaling.

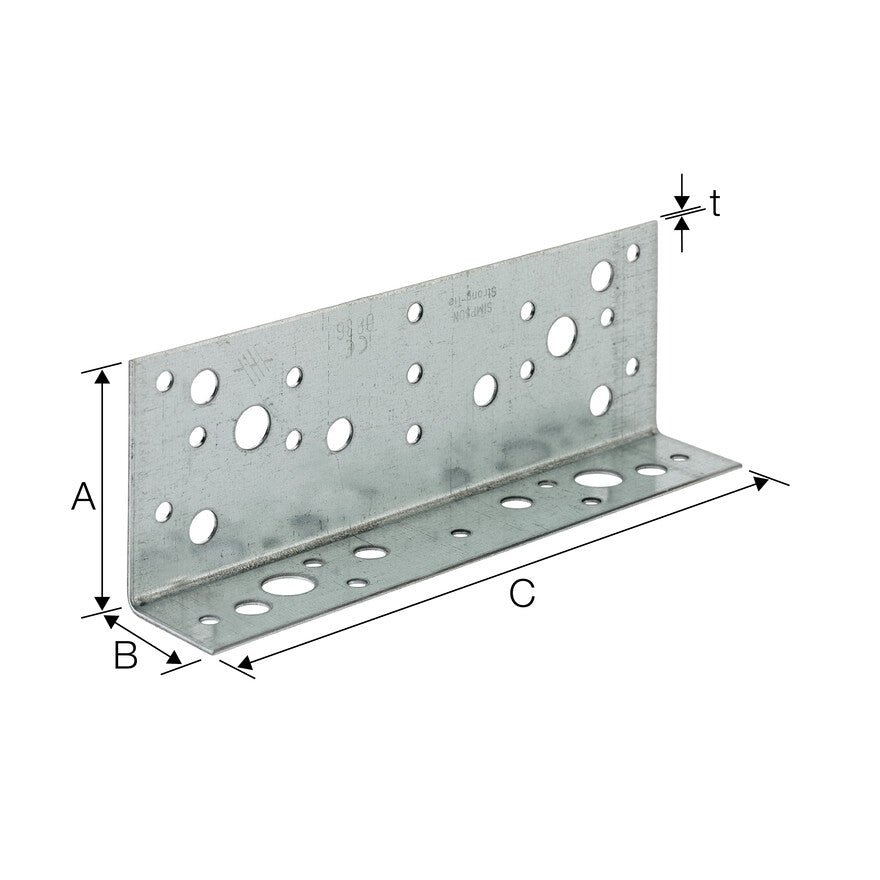

Size: 63(A) / 35(B) / 180(C)

63(A) / 35(B) / 180(C)

Availability: Ikke på lager

SKU: BNV33

Simpson Strong-TieAdjustable Corner Angle Bracket (EFIXR553 / EFIXR753 / EFIXR853A / EFIXR1053 / EFIXR1653)

Adjustable Corner Angle Bracket (EFIXR553 / EFIXR753 / EFIXR853A / EFIXR1053 / EFIXR1653)

Corner Angle Bracket (ANPS204425 / ANPS206625 / ANPS204440 / ANPS206640 / ANPS206660 / ANPS208880)

Simpson Strong-TieCorner Angle Bracket (ANPS204425 / ANPS206625 / ANPS204440 / ANPS206640 / ANPS206660 / ANPS208880)

Description

Specifications

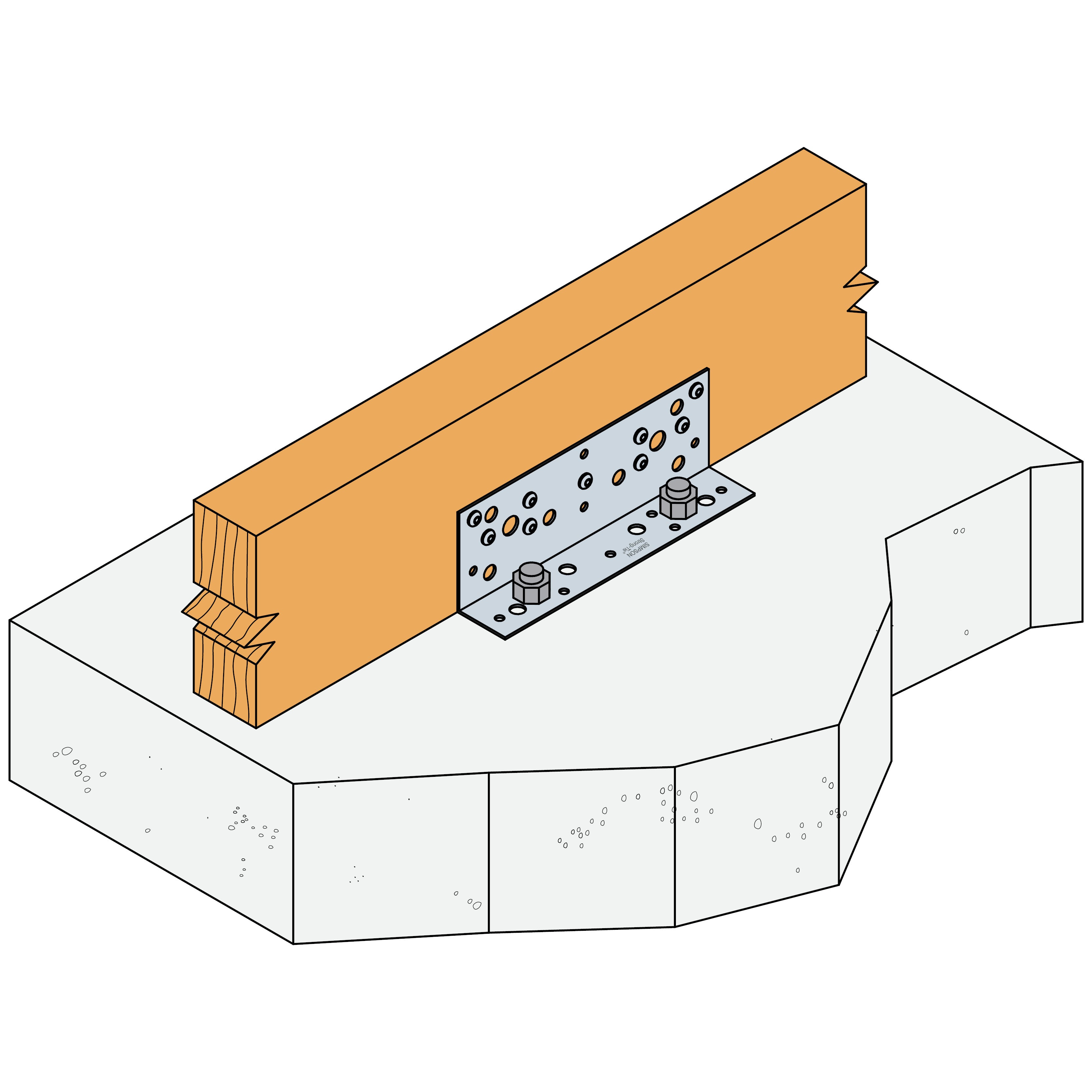

The angle bracket can be used to connect elements subjected to longitudinal forces.

Steel Quality:

S250GD + Z275 according to DIN EN10346

Corrosion Protection:

275 g/m² galvanized on both sides, 20mm

Advantages:

Easy installation
Connector for concrete and wood

Application:

Concrete, metal, wood

Brand

Simpson strong-tie

Type

Height (kopejais)

35 mm

Length

18 mm

Material

galvanized steel

Width (ieksejais)

63 mm
