  5. CE Certified Corner Angle Bracket (AB70 - 70mm; AB90 - 88mm; AB105 - 103mm)
By Simpson Strong-Tie

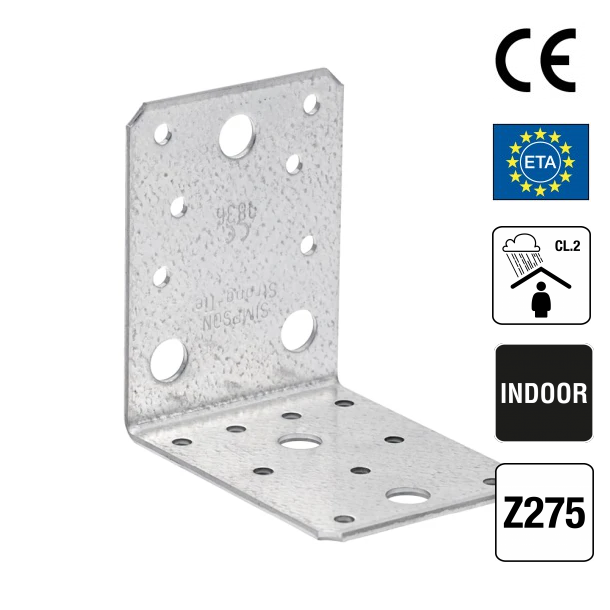

CE Certified Corner Angle Bracket (AB70 - 70mm; AB90 - 88mm; AB105 - 103mm)

Levering beregnes ved betaling.

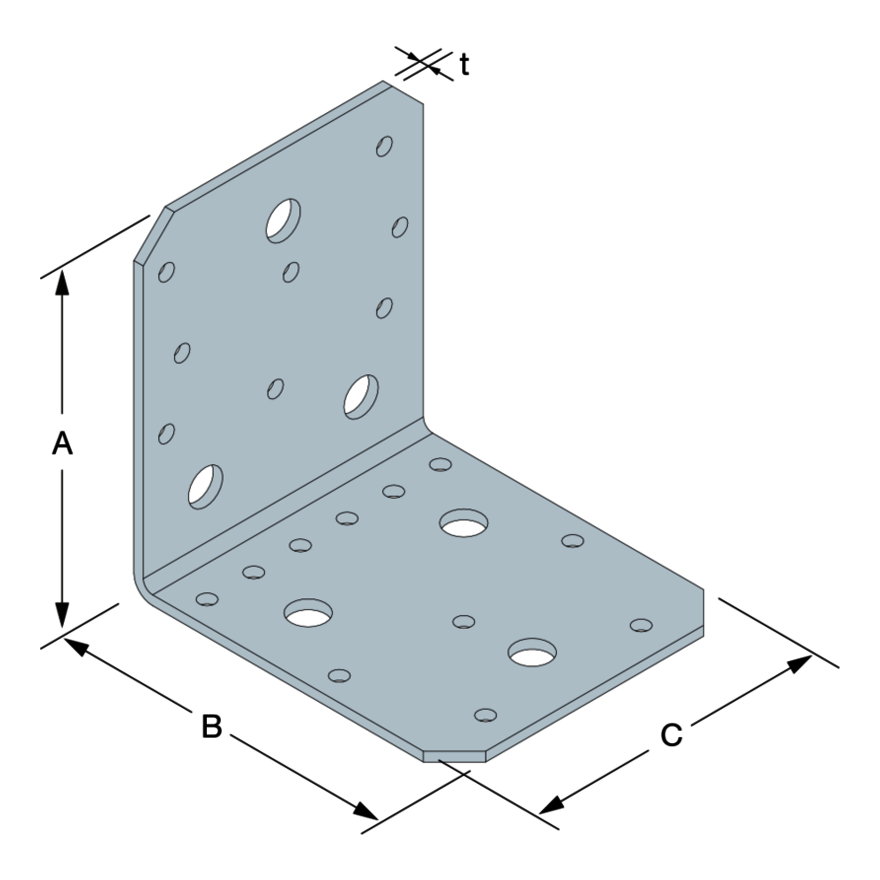

Size: 70(A) / 70(B) / 55(C)
Availability: Ikke på lager
SKU: AB70
Simpson Strong-TieCE Certified Reinforced Angle Bracket (AKR95LG / AKR285G / AKR285G)

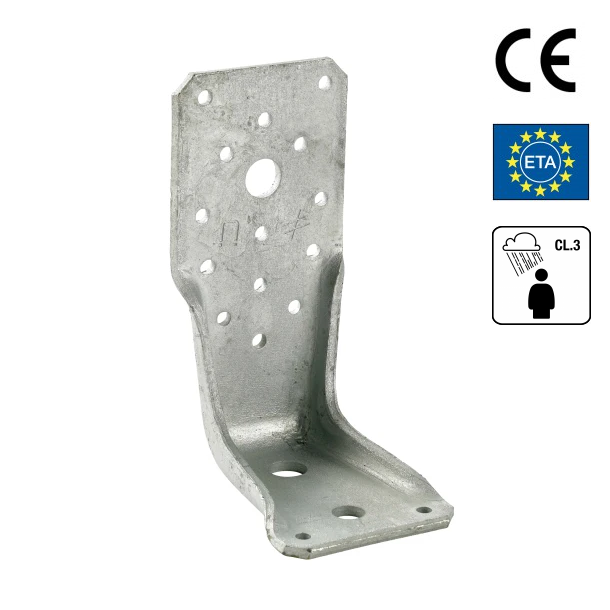

CE Certified Reinforced Angle Bracket (AKR95LG / AKR285G / AKR285G)
AB90 Simpson Strong-Tie - Mounting Angle (88 x 88 x 65 mm) (2.5 mm)
Simpson Strong-TieAB90 Simpson Strong-Tie - Mounting Angle (88 x 88 x 65 mm) (2.5 mm)

Description

Specifications

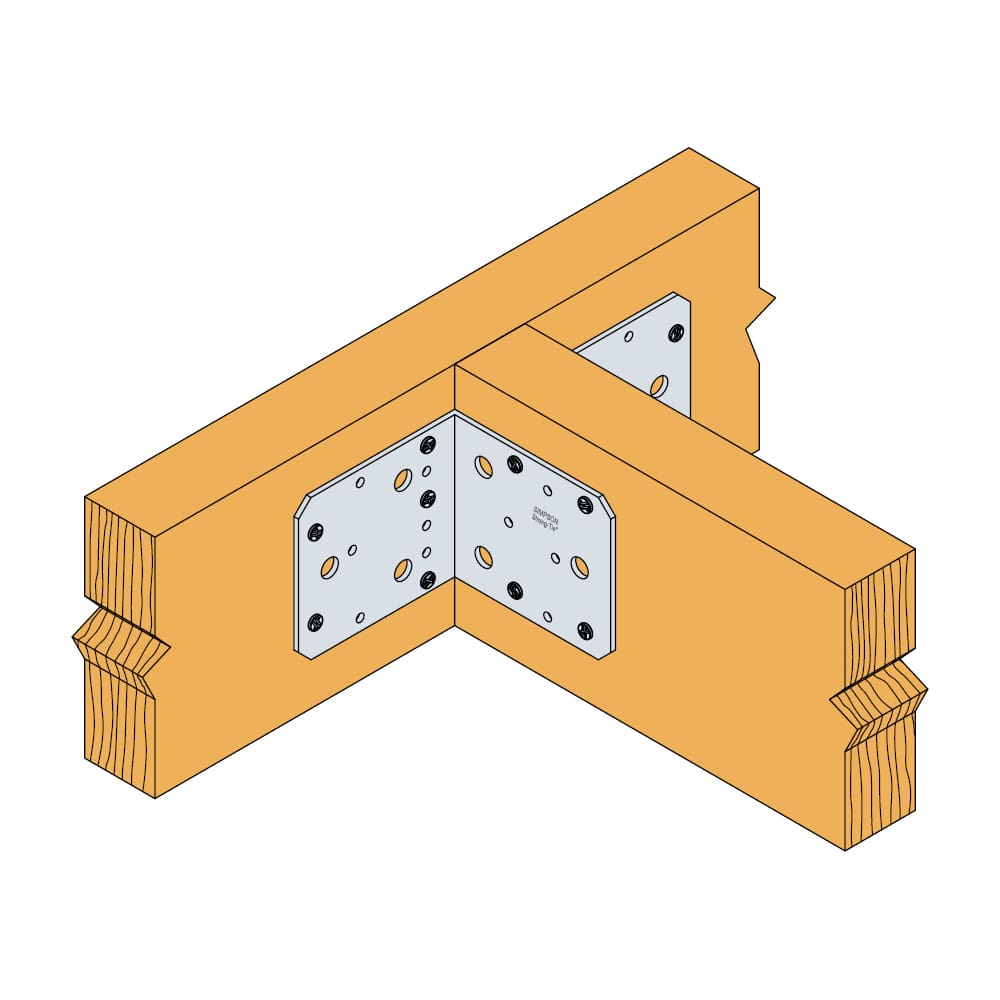

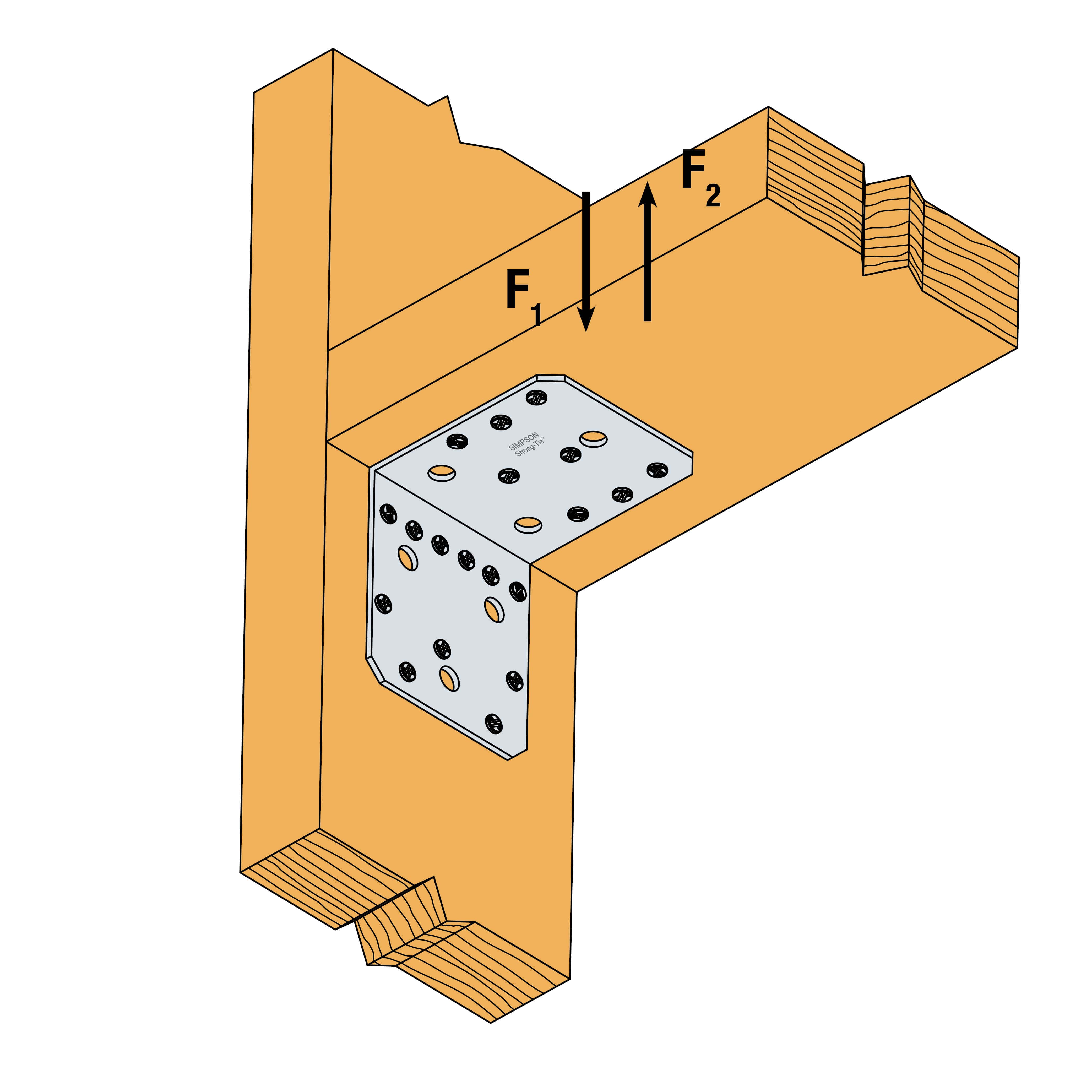

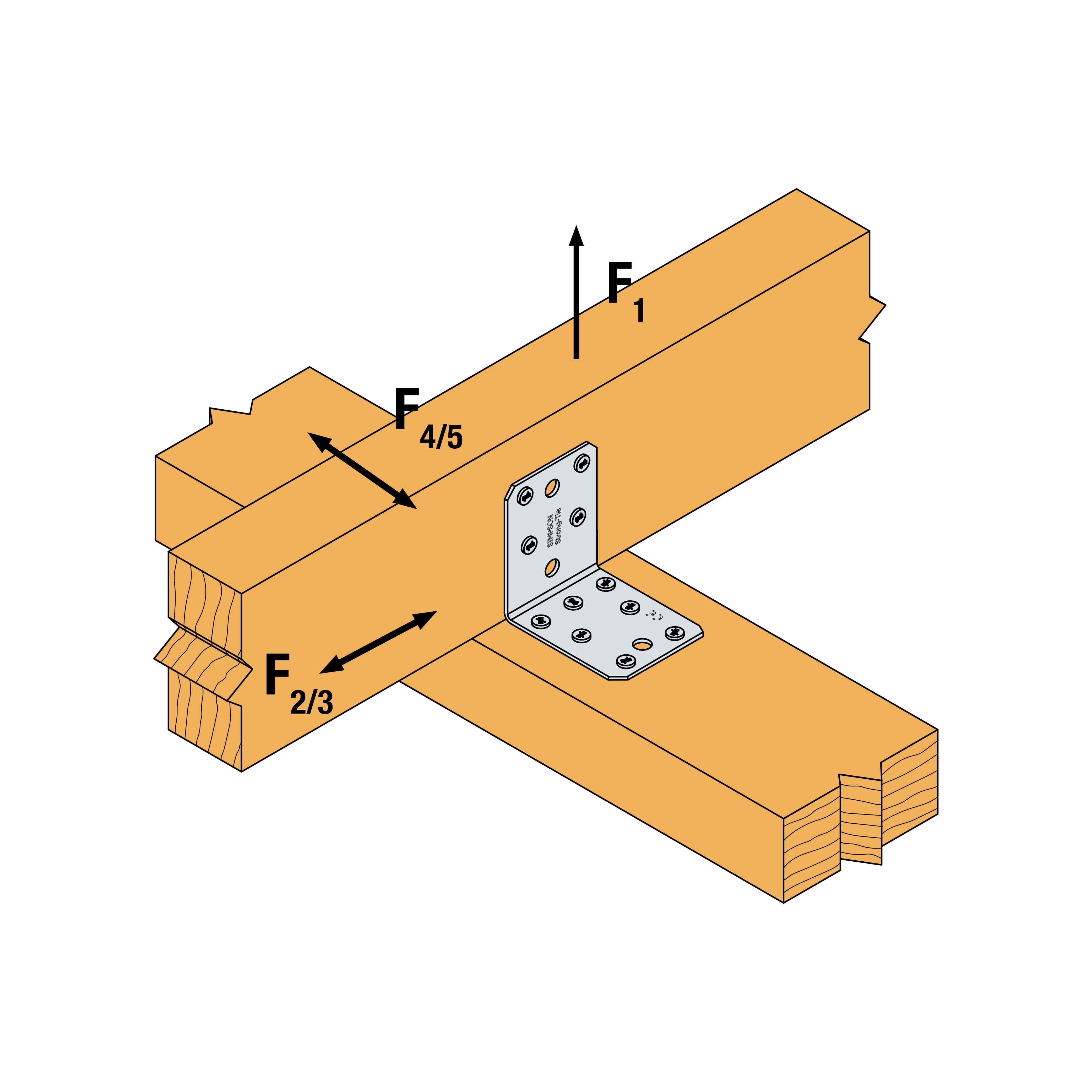

AB angle brackets are construction hardware used for the installation of load-bearing wooden structures. Connectors are utilized in wood-to-wood joints, wood-to-concrete joints, and other applications.



Product overview on the manufacturer's website:  Angle brackets - AB | Simpson Strong-Tie (strongtie.lv)

Brand

Simpson strong-tie

Type

Angle bracket

Height

70 - 103 mm

Length

70 - 103 mm

Material

galvanized steel S250GD + Z275 according to NF EN 10346.

Thickness

2 - 3 mm

Units viena per box

50 pcs

Width

55 - 90 mm
