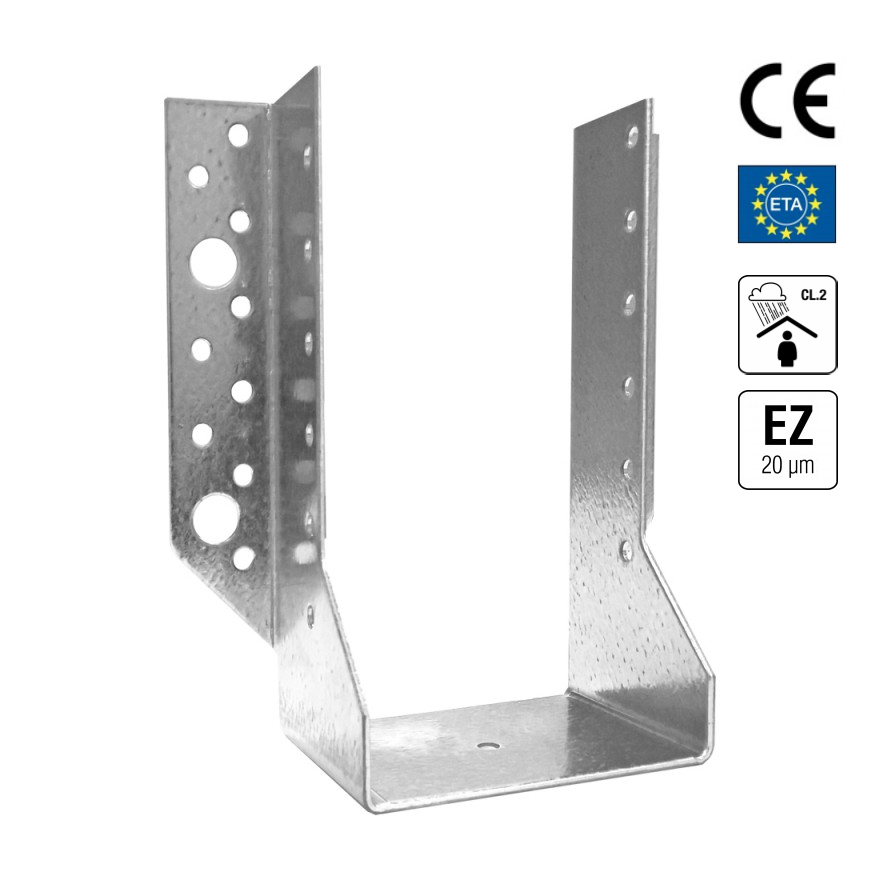

Beam Shoe - External Connector (100 x 150-300 mm)

Galvanized steel 20 µm CE and ETA certified construction hardware with second service class. The BSNN series consists of robust beam shoes designed for applications requiring additional strength. BSNN beam shoes are secured using CNA nails, and they feature 12 mm screw holes for fastenings. The depth of the beam shoe must be at least 2/3 of the height of the beam being secured to prevent rotation, unless additional reinforcement is attached to the top of the load-bearing element to restrict movement.

Material:

• Galvanized steel S250GD + Z275 according to EN 10346 (thickness: 2 mm)

Advantages:

• BSNN beam shoes are certified for three-axis loads.
• Connections with concrete, steel, and masonry are permitted.

Application:

• Beams
• Sheathing panels, rafters
• Reinforcement of existing joints

Product description and full specifications on the manufacturer's website: Face Fix Hangers - BSNN | Simpson Strong-Tie (strongtie.lv)
